400-0602-365
Max flow rate:11000ml/min
Made from stainless steel fully
industry use
Supply two types of Tubing Retainer mode: Clamper or fitting.
Introduction

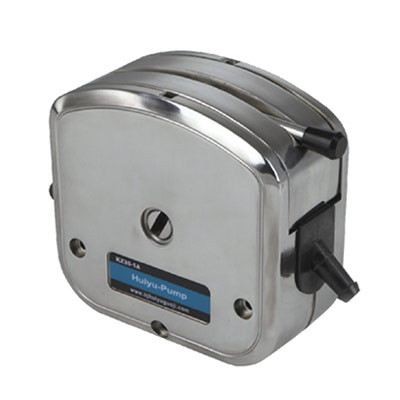

KZ35 pump head is made from 304 stainless steel fully. It is specially designed and produced for pharmaceutical and food industry according to GMP criteria. Also has the characteristics of large flow, stable and reliable operation, corrosion resistance, at the same time according to user’s needs, pump heads can be stacked.
Character
♢ Accept 73# or 82# tubing, supply wide range flow rate.
♢ Can stack two pump heads

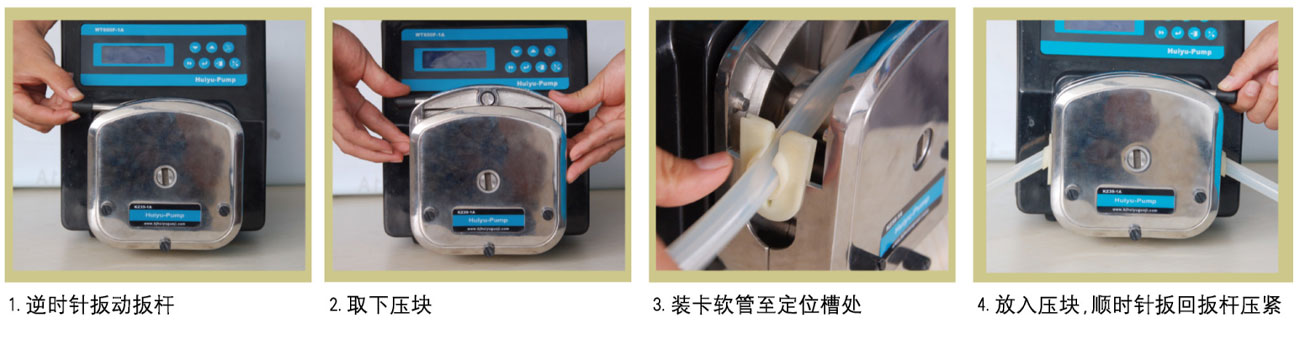

♢ The benefit of using clamper assembly: use the tubing without fittings, can meet the health level requirement of No residual fluid
♢ The benefit of using tubing fittings: outside of the pump head can adopt other tubing which is low cost
Flow curve
| Model | Spindle type | Number of rollers | Roller material | Shell material | Speed range (rpm) | Applicable hose specifications | Maximum reference flow (ml/min) | Weight (kg) |
| KZ35-1A | Long axis | 3 | SUS304 | SUS304 | ≤600 | 73# | 6000 | 3.7 |
| Short axis | 82# | 13000 |
