Introduction to pump head
◆ Hidden handle design, capable of emergency sudden power outage and temporary manual operation of the machine
◆ Low noise. Small size, compact structure
◆ Multiple combinations of brushless motor drivers, or direct control of brushless motors by users
◆ Mainly used in conjunction with equipment and instruments
Suitable for
Medical dialysis field
Technical Specifications
◆ Motor parameters
Rated voltage: 24VDC
Rated current: 3.2V
Polar logarithm: 8
Rated speed: 4000rpm
Reduction ratio: 1:19
◆ Machine parameters
Speed range: 0-100rpm, reversible in both forward and reverse directions
Pump head material: Zinc alloy with chrome plating treatment
Pressure tube method: elastic pressure tube
Applicable hose: outer diameter ≤ 10mm, wall thickness 1.75 ± 0.2mm
Flow range: 5~300mL/min (6.5mm IDx10mm OD)
2~165mL/min (4.6mm IDx8.4mm OD)

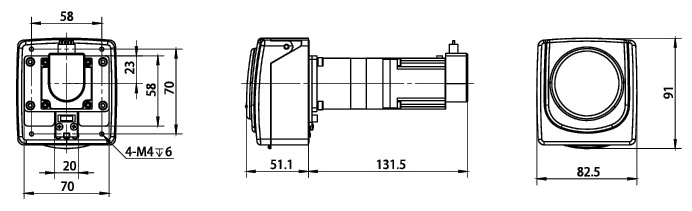

Dimensions: 182.6x82.5x91mm
Relative humidity of working environment:<80%
Working environment temperature: 0 ° C~40 ° C
Weight: 1.23kg

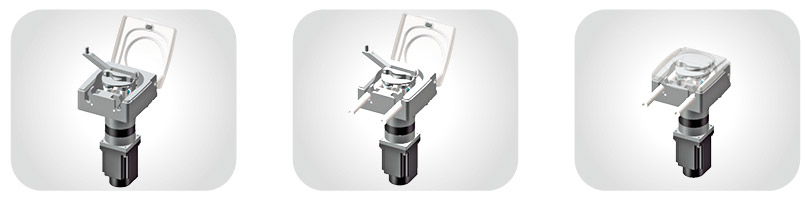

Installation diagram of hose
| Pump head model | Number of rollers | Wheel material | Shell material | Speed range (rpm) | Applicable hoses ID×OD(mm) | Reference traffic (mL/min) | Weight(kg) |
| TH20 | 4 | 304SSZinc alloy/chrome plating | +PC | ≤100 | 6.5×10 | 5~300 | 1.23 |
| 4.6×8.4 | 2~165 |
