Dispensing Pump
Your location:home page > Products > Dispensing Pump > Dispensing Pump
  400-0602-365

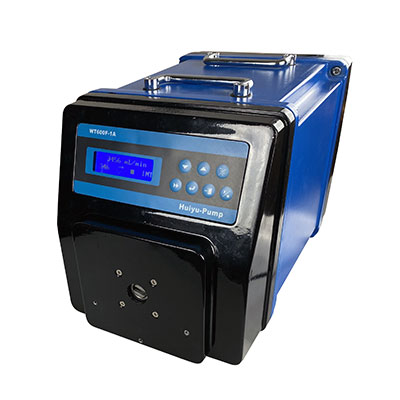

WT600F-1A
Single channel flow range:≤13000ml/min
National Hotline:400-0602-365

Product description

Industrial large flow filling peristaltic pump

The aluminum paint shell makes the product not only strong in corrosion resistance, but also strong and durable

High protection level design, so that the product can adapt to various harsh industrial occasions

DC brushless motor drive, high waterproof membrane button manual control, support external signal control and communication control

Features

◇ Automatic allocation function

◇ LCD display function

◇ Automatic correction function

◇ Memory function

◇ Suction back function

◇ Communication function

◇ Filling and emptying function

◇ Output function

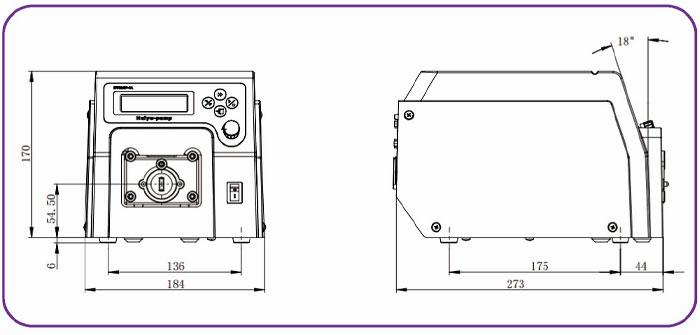

Dimensions

Technical parameter

◇ Speed: 10-600 rpm, reversible Speed precision: 1 rpm

◇ Speed control: membrane keypad

◇ Display: LCD displays flow rate, speed or dispensing mode

◇ Copy number: 1 to 9999, 0 means unlimited cycle

◇ Dispensing volume: 0.1mL to 99.9L

◇ Pause time : 0.1 to 99.9min

◇ Back Suction: 0 to 9.9 revolutions , precision is 0.1 revolution

◇ External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional

◇ Communication: RS485

◇ Output signal: start/stop, direction output and speed, OC gate output mode

◇ Power: AC176V-264V            50/60Hz

◇ Power consumption: < 300W

◇ Operating condition: Temperature 0 to 40°C, Relative humidity < 100%

◇ Dimensions (L × W × H): 420×229×270 (mm)

◇ Driver W eight:12kg

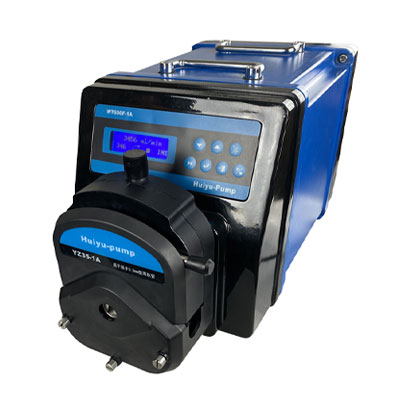

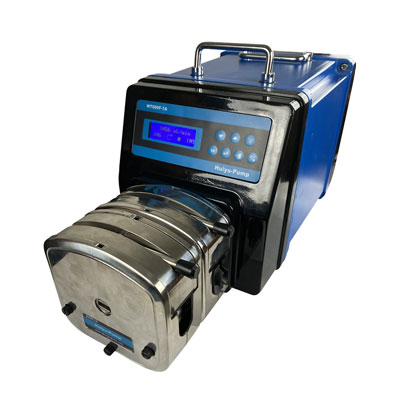

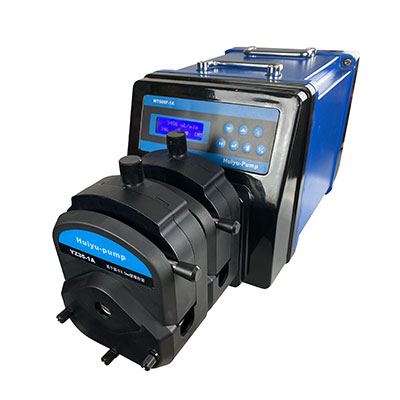

Pump head picture

Name/Model Applicable hose Reference flow range

(1-2)×YZ35-12A 73#、82# ≤13000ml / min(单通道)

(1-2)×YZ35-13A



Download Document: WT600F-1A.pdf
