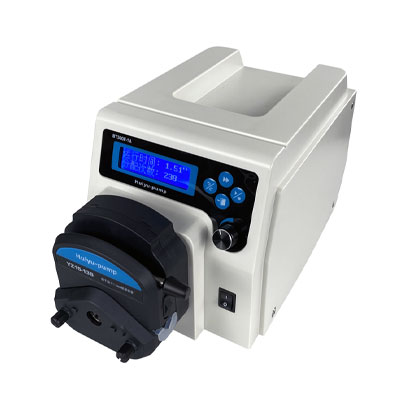

Product description
Mainly used in laboratories, research institutes, universities and industrial filling
Using dot matrix liquid crystal display operation menu and parameter setting menu, friendly man-machine interface
With a variety of control methods, the peristaltic pump can be externally controlled through the standard external control interface and the 485 communication interface
The top handle, switches, knobs and other operating links are in front, making it more convenient for users to use
Features
◇ Automatic allocation function
◇ Automatic correction function
◇ Suction back function
◇ Filling and emptying function
◇ LCD display function
◇ Memory function
◇ Communication function
◇ Working status output function

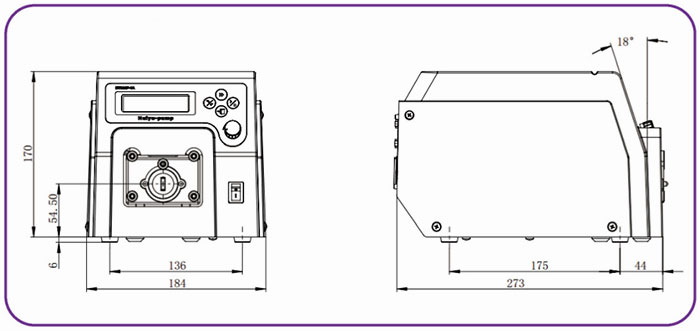

Dimensions
Technical parameter
♢ Speed: 1-300 rpm, reversible Speed precision: 1 rpm
♢ Speed control: membrane keypad and rotary encoded switch
♢ Display: LCD displays flow rate, speed or dispensing mode
♢ Copy number: 1 to 999, 0 means unlimited cycle
♢ Dispensing volume: 0.1 mL to 99.9 L
♢ Pause time : 1 to 999 sec
♢ Back suction angle: 0 to 360°, 18° increments
♢ External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
♢ Communication: RS485
♢ Output signal: start/stop, direction output and speed, OC gate output mode
♢ Power: 90-260V AC，50/60Hz
♢ Power consumption: < 50W
♢ Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
♢ Dimensions (L × W × H): 276×184×175 (mm)
♢ Drive Weight: 3.5 kg
|

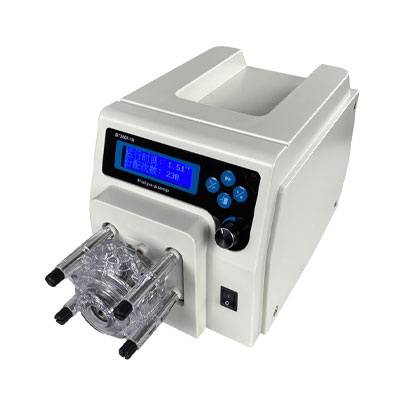

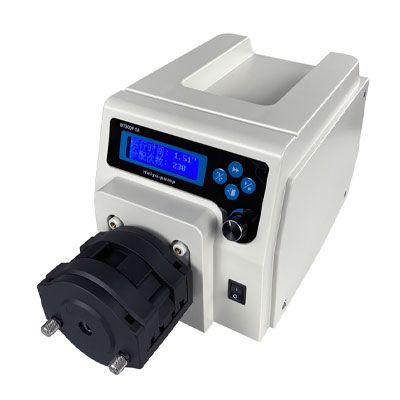

Pump head picture |
Name/Model | Applicable hose | Reference flow range |
 |
YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | 0.07-1140ml/min |
| YZ25-13A | 15#、24# | 1.7-840ml/min |
