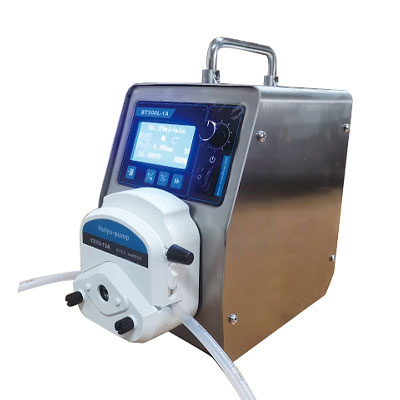

Product description
Using 128×64 dot matrix large-screen LCD display
The flow and speed of the pump can be displayed at the same time
With flow correction function
The operation is completed by the cooperation of the membrane button and the rotary coding switch
Features
◇ Membrane buttons can control start and stop, direction and speed
◇ Can quickly fill and empty function
◇ It can communicate with the host computer
◇ External control signal can control start and stop, direction and speed
◇ Power-down memory function; leakage protection function; overheating protection function
◇ Different pump heads can be replaced
Dimensions
Technical parameter
◇ Speed range: 1-300rpm, resolution 0.1 rpm
◇ External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)
◇ Display mode: graphic dot matrix liquid crystal display
◇ Communication method: RS485 half duplex
◇ Applicable power supply: AC 220V ±20% 50~60Hz
◇ Power consumption: ≤55W
◇ Working environment: ambient temperature 0℃~40℃ relative humidity＜80%
◇ Dimensions: 202×153×260 (length×width×height)mm
◇ Drive weight: 5.5kg
◇ Degree of protection: IP31
| Pump head picture | Name/Model | Applicable hose | Reference flow range |
 | YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | ≤760ml/min |
| YZ25-13A | 15#、24# | ≤540ml/min |
