variable speed OEM pump
Your location:home page > Products > variable speed OEM pump > variable speed OEM pump
  400-0602-365

OEMDSK100-01
42 stepping motor, bottom plate installation, customizable
Flow range: ≤170ml/min
National Hotline:400-0602-365

Product description

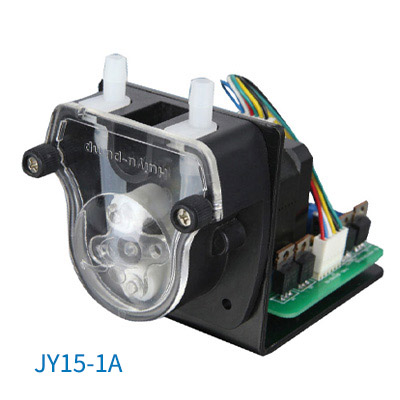

Two pump head modes are optional: JY15-1A, JY15-2A

Small size, simple structure, easy control

Mainly used in equipment and instruments

Realize fluid transmission below 170mL/min

It adopts the control mode of DIP switch combined with external signal, suitable for analog signal 4-20mA, 0-5V, 0-10V, 0-10kHz and RS485 communication control mode

Optional control mode: 4-20mA, 0-5V, 0-10V, 0-10kHz, RS485

Flow curve

Dimensions

Technical parameter

Project Parameter
Range of rotation ≤100rpm; resolution 0.1rpm
Speed resolution 1rpm for internal control; 0.1rpm for external control
Direction Positive and negative reversible, contact signal control; short-circuit reverse, open forward
Start and stop Contact signal control; short-circuit stop, disconnect operation
Internal control speed 16-speed BCD dial switch, 0-speed corresponding speed is controlled by external signal, 1-F-speed corresponding speed (rpm) 1, 3, 5, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50 , 55, 60, 65, 70, 80, 90, 100
External control speed 4-20mA, 0-5V, 0-10V, 0-10kHz linearly correspond to 0-100rpm
Dimensions 181×60×96(L×W×H) mm
Use environment Relative humidity <80%, ambient temperature 0-40℃
Power requirements DC 12V/24V 1.5A
Applicable hose 16#、25#、17#
Maximum reference flow 170ml/min
