Basic pump
Your location:home page > Products > Basic pump > Basic pump
  400-0602-365

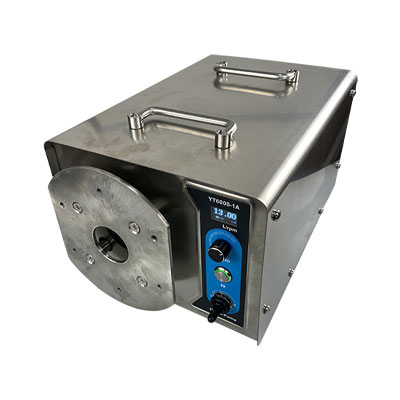

YT600S-1A
Flow range:≤13000ml/min
National Hotline:400-0602-365

Product description

Driven by stepping motor, lower speed and higher flow stability

One-key switch flow status (take 82# tube flow as reference)

Support Modbus communication protocol

Lighter weight, add RS485 communication function

Features

◇ A variety of pump heads can be adapted: YZ35, KZ35

◇ Suitable for industrial production, large flow conveying

◇ It is mostly used in the food and pharmaceutical packaging machinery industry, with a stainless steel pump head integrated with the body

◇ When equipped with a single-channel pump head, it can cooperate with the sub-assembly controller for cyclic control and timing start-stop function

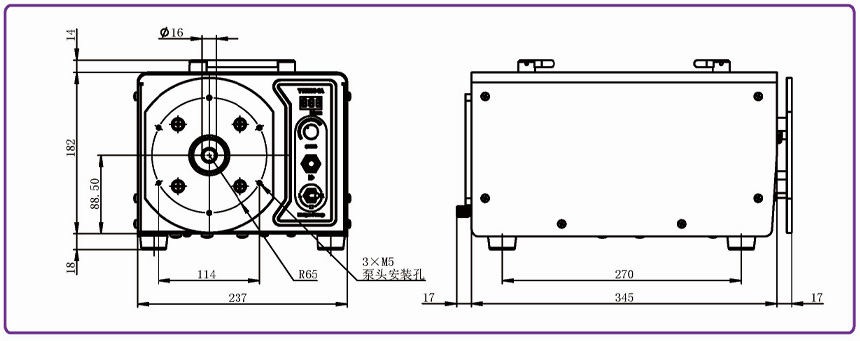

Dimensions

Technical parameter

◇ Speed range: 1-650rpm, reversible forward and reverse

◇ Control method: knob combined with button, support external signal control

◇ Speed adjustment mode: the speed of the pump is adjusted by the digital knob

◇ Start-stop mode: left/stop/right control is completed by the panel switch

◇ External control function: start-stop control, direction control, speed control (4-20mA, 0-5V, 0-10V)

◇ Applicable power supply: AC 220 ±10%

◇ Power rate: ≤400W

◇ Working environment temperature: 0-40℃

◇ Relative humidity: <80%

◇ Dimensions: 360x240x200 (length x width x height) mm

◇ Degree of protection: IP31

◇ Weight: 15.22Kg

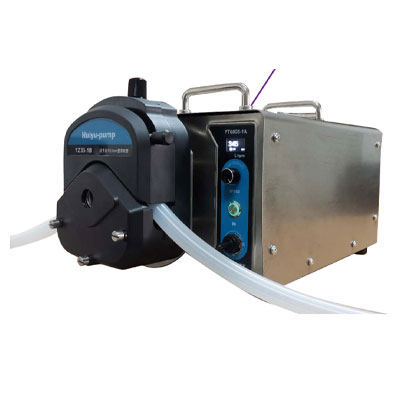

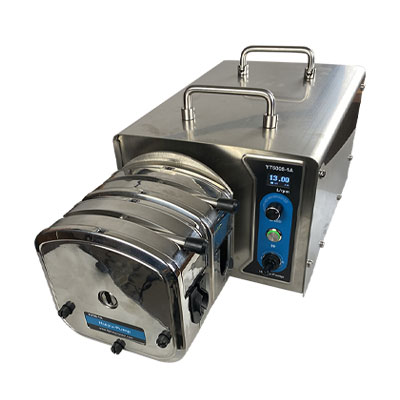

Pump head picture Name/Model Applicable hose Reference flow range

(1-2)×Y35-13A 73#、82# ≤13000ml/min(Single channel)

(1-2)×K35-13A



Download Document: YT600S-1A.pdf
