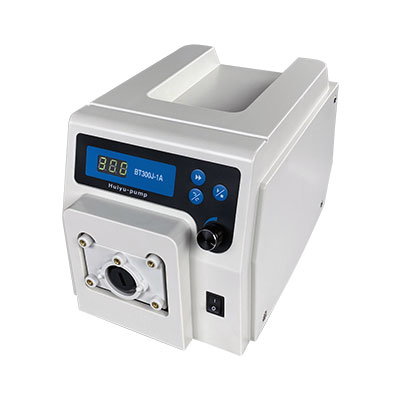

BT300J-1A
Flow range:≤1140ml/min
National Hotline:400-0602-365

Product description

It is suitable for accurate transmission of flow in laboratories and industrial fields. The speed can reach 300rpm and the flow can reach 1140ml/min. Compared with domestic products of the same specification, our design is more compact, and the handle design on the top facilitates the user's movement and carrying of the product. Switches, knobs, buttons and other operation links are in front

The user's operation is simpler and more convenient. The exquisite appearance of the plastic case, coupled with the matt black sheet metal bottom case, makes the entire device look exquisite

Features

◇ Membrane buttons can control start and stop, direction and speed

◇ Can quickly fill and empty function

◇ It can communicate with the host computer

◇ External control signal can control start and stop, direction and speed

◇ Power-down memory function

◇ Leakage protection function

◇ Overheat protection function

Dimensions

Technical parameter

♢ Speed: 1 to 300 rpm, reversible

♢ Speed resolution: 1 rpm

♢ Running direction: cw/ccw

♢ Display: 3-digit LED displays current speed

♢ Analog interface: Start/stop and cw/ccw control, 0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control

♢ Communication interface: RS485

♢ Power supply: AC 90 - 260V 50/60 Hz

♢ Power consumption: < 50W

♢ Operating condition: Temperature 0 to 40℃ Relative humidity < 80%

♢ Drive weight: 3.5 kg

♢ Dimensions (L×W×H): 276×184×175 (mm)

♢ IP rating: IP 31

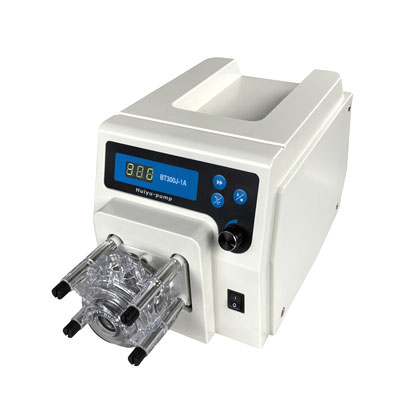

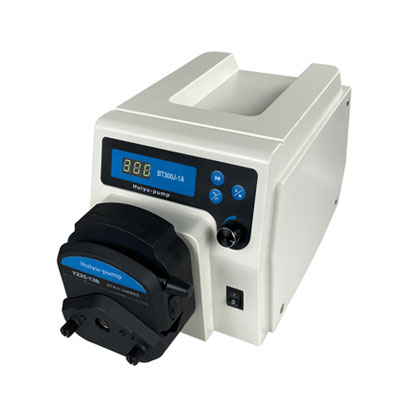

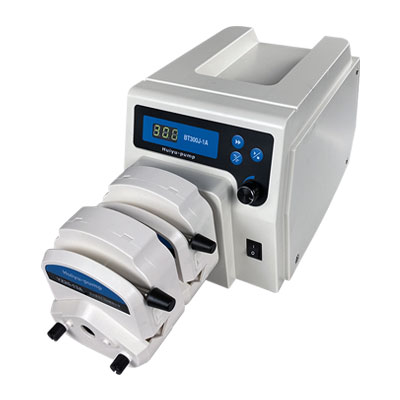

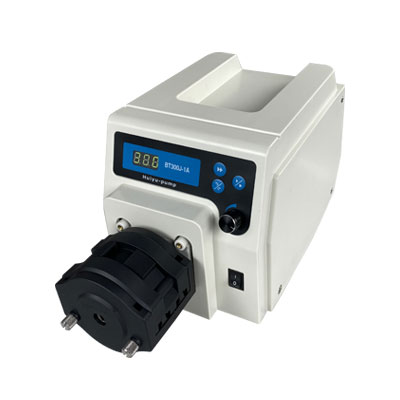

Pump head picture Name/Model Applicable hose Reference flow range
YZ15-13A 13#、14#、19#、16#、25#、17#、18# 0.07-1140ml/min
YZ25-13A 15#、24# 1.7-840ml/min

BZ15系列 13#、14#、19#、16#、25#、17#、18# 0.07-1140ml/min
BZ25-1A 15#、24# 0.26-780ml/min

DMD15-2A/1A 13#、14#、19#、16#、25# ≤870ml/min



Download Document: BT300J-1A.pdf
