Product description

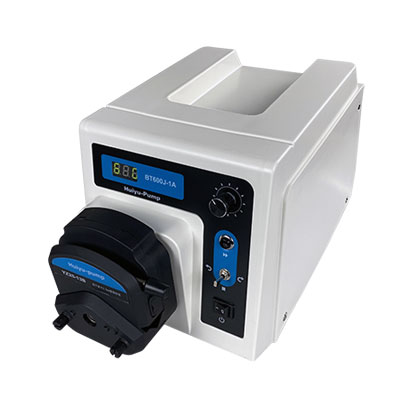

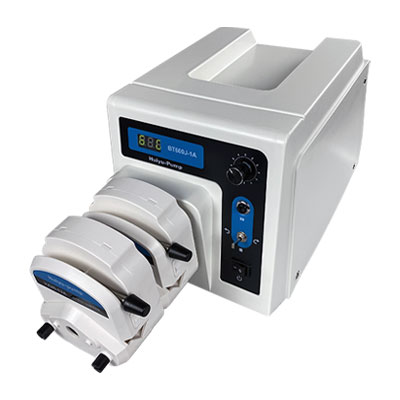

The stepper motor is subdivided and driven, and the speed is 600 rpm, which can provide a flow of 2200ml/min; the top of the casing is designed with a handle, which is convenient for moving and carrying the body. This pump is used in conjunction with the sub-packing controller FK-1A, which can realize the filling function, and the operation is simple and intuitive
Features
◇ MAX key: with filling and emptying functions
◇ Rotation speed can be adjusted manually or controlled by external control interface
◇ Power-down memory function: After power-on again, it will work according to the state of the last power-off
◇ With RS485 communication function, external control analog quantity and pulse control function
Dimensions
Technical parameter
◇ Speed range: 1-600 rpm forward and reverse reversible
◇ Speed resolution: 1 rpm
◇ Control mode: knob combined with button, support external signal control and communication control
◇ Display mode: 3-digit LED speed display
◇ External control function: start-stop control, direction control, speed control (0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control)
◇ Communication interface: RS485
◇ Power-down memory: After power-on, it can continue to work according to the state before power-off
◇ Full speed function: One key to control full speed work, used for filling, emptying, etc.
◇ Dimensions: 290×210×186 (length×width×height) mm
◇ Applicable power supply: AC 90V-260V
◇ Work rate: ≤100W
◇ Working environment: temperature 0℃-40℃, relative humidity <80%
◇ Degree of protection: IP31
◇ Weight: 3.8Kg
| Pump head picture | Name/Model | Applicable hose | Reference flow range |
 |
YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | 0.07-2200ml/min |
| YZ25-13A | 15#、24# | 1.7-1600ml/min | |
|
|
BZ15 | 13#、14#、19#、16#、25#、17#、18# | 0.07-2200ml/min |
| BZ25-1A | 15#、24# | 2.9-1600ml/min | |
|
|
DMD15-2A/1A | 13#、14#、19#、16#、25# | ≤1760ml/min |
