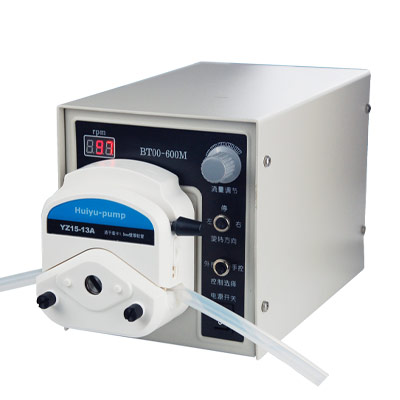

Product description
The stepping motor is subdivided and driven, the speed is less than or equal to 600 rpm, and the plastic-sprayed metal shell is stable and generous, which can be used in the harsher industrial production environment.
Features
◇ MAX key: with filling and emptying functions
◇ Rotation speed can be adjusted manually or controlled by external control interface
◇ Power-down memory function: After power-on again, it will work according to the state of the last power-off
◇ With RS485 communication function, external control analog quantity and pulse control function
Technical index
◇ Speed range: 1-600 rpm forward and reverse reversible
◇ Speed resolution: 1 rpm
◇ Control mode: knob combined with button, support external signal control and communication control
◇ Display mode: 3-digit LED speed display
◇ External control function: start-stop control, direction control, speed control ((0-5V, 0-10V, 0-10KHZ optional)
◇ Communication interface: RS485
◇ Power-down memory: After power-on, it can continue to work according to the state before power-off
◇ Full speed function: One key to control full speed work, used for filling, emptying, etc.
◇ Dimensions (L×W×H): 237×148×170mm
◇ Applicable power supply: AC 90V-260V
◇ Work rate: ≤100W
◇ Working environment: temperature 0℃-40℃, relative humidity <80%
◇ Degree of protection: IP31
◇ Weight: 3.8Kg
| Pump head picture | Name/Model | Applicable hose | Reference flow range |
|
|
(1-4)×YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | 4.2-2200ml/min |
| (1-4)×YZ25-13A | 15#、24# | 100-1600ml/min | |
|
|
(1-4)×BZ15 | 13#、14#、19#、16#、25#、17#、18# | 4.2-2200ml/min |
| (1-4)×BZ25 | 15#、24# | 174-1600ml/min |
