WT600F-1B
This product is an upgraded substitute for wt600f-1a The volume is relatively smaller, the weight is light, and the protection grade remains unchanged
National Hotline:400-0602-365

Product introduction

Industrial large flow filling peristaltic pump

Stainless steel paint shell makes the product not only strong corrosion resistance, but also firm and durable

High protection grade design enables the product to adapt to various industrial occasions with harsh conditions

DC brushless motor drive, high waterproof membrane key manual control, support external signal control and communication control

Functional features

◇ automatic distribution function

◇ LCD function

◇ automatic correction function

◇ memory function

◇ back suction function

◇ communication function

◇ filling and emptying functions

◇ output function

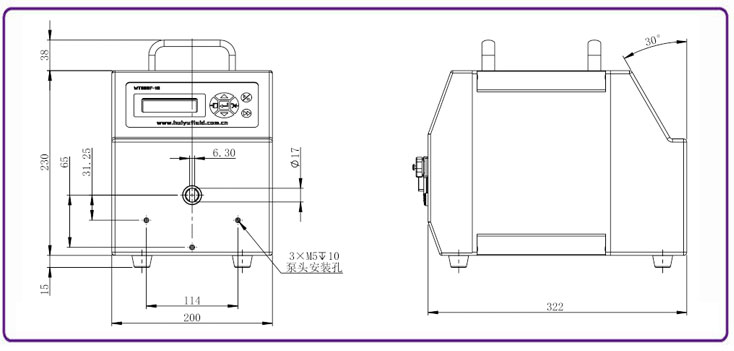

Dimensional drawing

technical parameter

◇ speed range: 10-600rpm, resolution: lrpm; Reversible direction

◇ adjustment mode: membrane key adjustment

◇ display interface: flow mode, speed mode and distribution mode

◇ allocation times: 1-9999 times, "0" means infinite cycle

◇ distribution volume: 100ml-999l

◇ interval time: 0.1s-99.9min, adjust the resolution by 0.1s

◇ number of sucking back circles: 0-9.9 circles, adjust the resolution by 0.1 circle

◇ external control mode: 0-5v/10v, 4-20mA, 0-10kHz

◇ communication mode: RS485

◇ output signal: start stop, direction is OC gate output, speed is voltage output 0-7500hz, linear corresponding to 0-600rpm

◇ applicable power supply: 176-264v AC, 50/60hz

◇ power rate: ≤ 320W

◇ working environment: ambient temperature 0-40 ℃, relative humidity <80%

◇ overall dimension: 322 × two hundred × 283 (long × wide × Height) mm

◇ weight: 7.5kg

◇ protection grade: IP65
