product description
It can accurately quantify the liquid and has the function of automatic calibration. It can also be used for external control of the pump or PC communication control via PLC.
The product has a small and exquisite design, stable product performance, and an 18° angle between the operation interface and the horizontal, which makes the user's operation easier and more comfortable
Features
◇ Automatic allocation function
◇ Automatic correction function
◇ Suction back function
◇ Filling and emptying function
◇ LCD display function
◇ Memory function
◇ Communication function
◇ Working status output function
Dimensions
Technical parameter
◇ Speed: 0.1-100 rpm, reversible
◇ Speed precision: 0.1 rpm
◇ Dispensing volume: 0.01mL to 9.99L
◇ Copy number: 1 to 9999, 0 means unlimited cycle.
◇ Pause time : 0.1sec to 99.9 min
◇ Speed control: membrane keypad and rotary encoded switch
◇ External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
◇ Communication control: RS485
◇ Output signal: start/stop, direction output and speed, OC gate output mode
◇ Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
◇ Dimensions (L × W × H): 243×151×157 (mm)
◇ Power: 90-260V AC，50/60Hz
◇ Power consumption: < 40W
◇ Drive Weight: 3.5 kg
◇ IP rating: IP 31
| Pump head picture | Name/Model | Applicable hose | Reference flow range |
 |

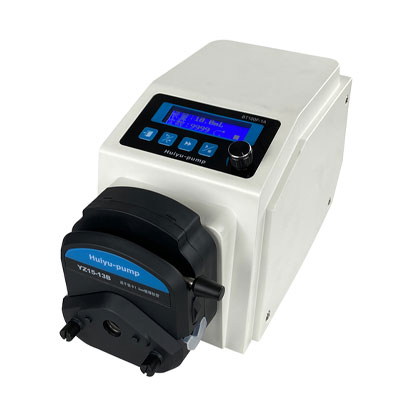

YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | 0.07-380ml/min |
| YZ25-13A | 15#、24# | 0.2-270ml/min | |
 |
DG-(1-4)A 6 Scroll wheel | Inner diameter≤3.17mm Wall thickness: 0.8-1mm |
0.00025-48ml/min（Single channel） |
| DG-(1-4)B 10 Scroll wheel | 0.0002-32ml/min（Single channel） | ||
 |
DMD15-2A/1A | 13#、14#、19#、16#、25# | ≤290ml/min |
