Basic pump
Your location:home page > Products > Basic pump > Basic pump
  400-0602-365

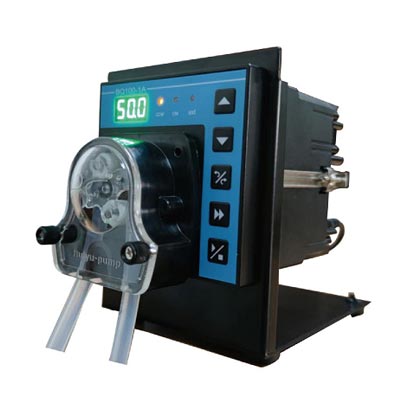

BQ100-1A
Flow range:0.0003-170mL/min
National Hotline:400-0602-365

Product description

Flow rate range: 0.0003-170mL/min

Optional multiple pump heads: WX10 series, JY15 series stepper motor driver, 128 times subdivision, high precision, low vibration, ultra-quiet. The standard stand is convenient for desktop use. The bracket can also be removed and used in the device.

Feature

Full speed function: fill, empty

Power-down memory: storage status

Specially designed for OEM: small size, light weight, can be used as a set

Installation method: embedded installation, bracket installation

Technical parameter

♢ Speed: 1 to 100 rpm, reversible

♢ Speed precision: 0.1 rpm

♢ Speed control: Membrane keypad cw(green light)/ ccw(blue light) control

♢ Display: 3-digit LED displays current rpm

♢ External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz

♢ Communication interface: RS485

♢ Power supply: AC 220V 50/60 Hz

♢ Power consumption: ≤30 W

♢ Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%

♢ Drive weight: 0.6 kg kg

♢ Dimensions (L×W×H): 185 × 110 × 140  (mm)

♢ IP rating: IP 31

Dimensions

Driver Applicable pump head Number of channels Applicable hose Flow range
BQ100-1A WX10 1 Wall thickness≤1mm, inner diameter≤3.17mm ≤24ml/min
JY15 1 16#、25#、17# ≤170ml/min



Download Document: BQ100-1A.pdf
