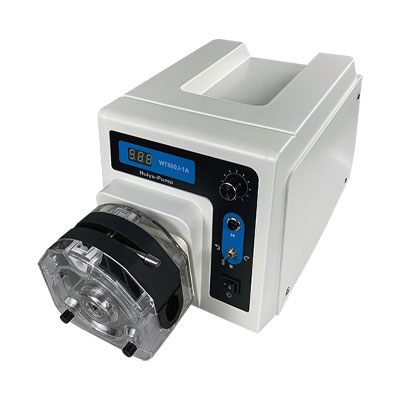

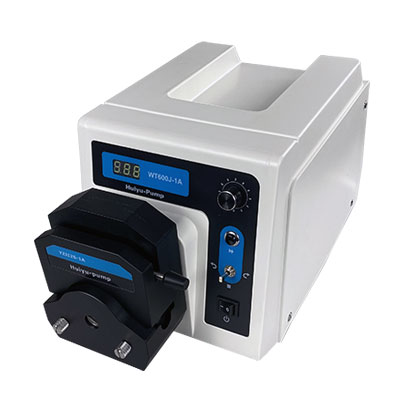

Product description
Driven by a DC brushless motor, it has the characteristics of high efficiency, low vibration, large torque and maintenance-free
It has a variety of control methods, which can be controlled by external analog quantity and communication through the standard external control interface
Features
◇ Equipped with RS485 communication function to control the work of the pump
◇ 3-digit LED digital tube speed display information
◇ External control interface input function: can control the speed, start and stop, and direction of rotation
◇ It is suitable for a variety of pump heads and hoses, which expands the scope of use and is convenient for customers to use

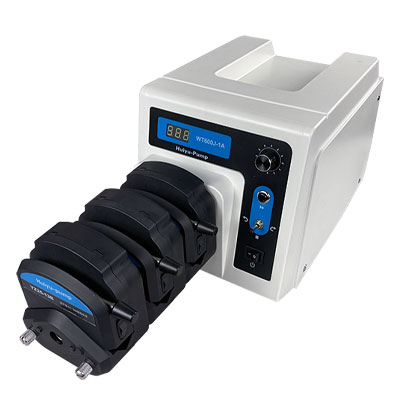

◇ Large torque output, which can drive dual channel pump head to work
◇ Driven by DC brushless motor, with large output torque and maintenance-free
◇ Simple and practical operation of switches, buttons and knobs
Dimensions
Technical parameter
◇ Speed range: 60-600 rpm, reversible forward and reverse
◇ Speed adjustment resolution: 1rpm
◇ Speed control accuracy: ≤±1%
◇ Control method: knob combined with button, left stop right switch, support external signal control and communication control
◇ Display mode: 3-digit LED speed display
◇ External control function: start-stop control, direction control, speed control (0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control)
◇ Communication interface: RS485
◇ Power-down memory: After power-on again, it can continue to work according to the state before power-off
◇ Full speed function: One key to control full speed work, used for filling, emptying, etc.
◇ Applicable power supply: AC 220V ±20%/200W
◇ Working environment temperature: 0℃-40℃
◇ Relative humidity of working environment: <80%
◇ Dimensions: 290x210x186 (length x width x height) mm
◇ Degree of protection: IP31
◇ Weight: 3.8Kg
| Pump head picture | Name/Model | Applicable hose | Reference flow range |
|
|

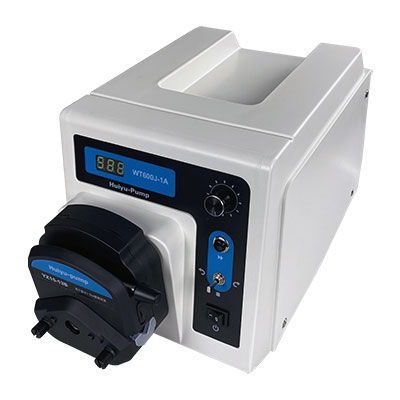

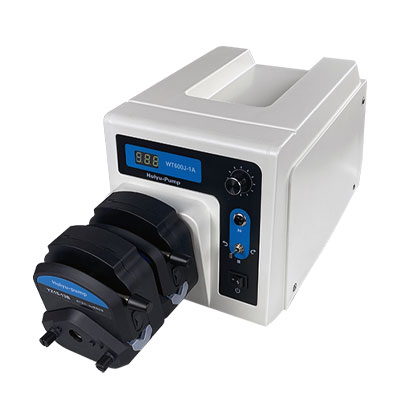

(1-4)×YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | 4.2-2200ml/min |

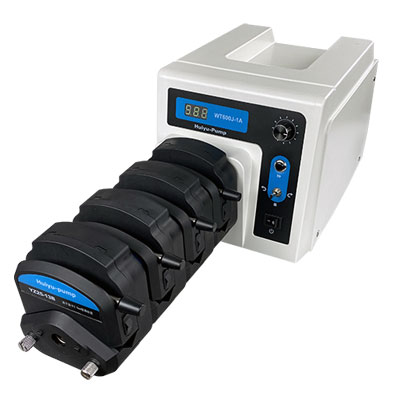

| (1-4)×YZ25-13A | 15#、24# | 100-1600ml/min | |
|
|

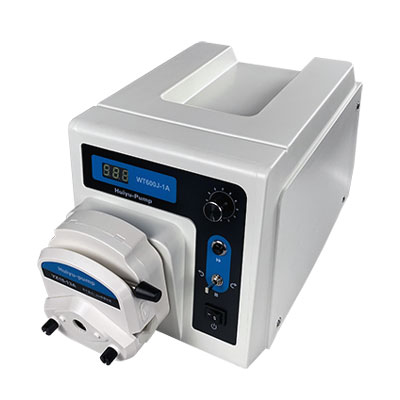

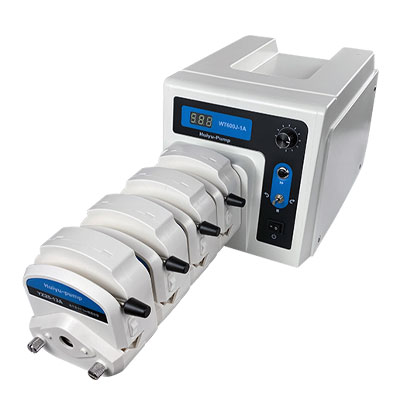

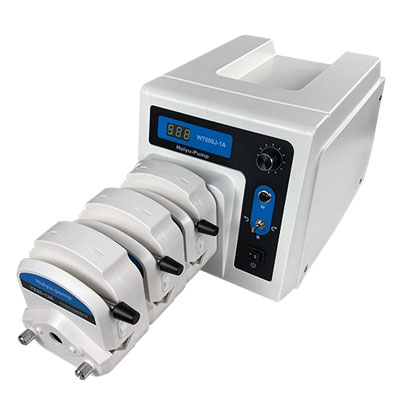

(1-4)×BZ15 | 13#、14#、19#、16#、25#、17#、18# | 4.2-2200ml/min |
| (1-4)×BZ25 | 15#、24# | 174-1600ml/min | |
|
|

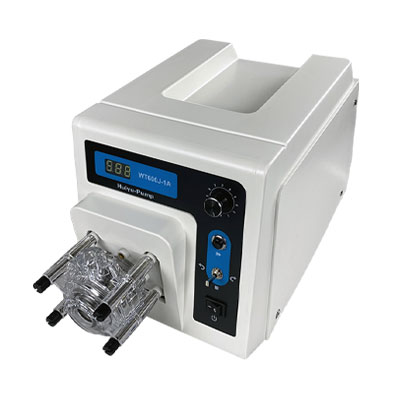

DMD15-2A/1A | 13#、14#、19#、16#、25# | ≤870ml/min |
|
|
(1-2)×KZ25 | 15#、24#、35#、36# | 200-6000ml/min |
|
|
(1-2)×YZⅡ15 | 25#、17#、18# | ≤3220ml/min |
| (1-2)×YZⅡ25 | 15#、24#、35#、36# | ≤4140ml/min |
