Dispensing Pump
Your location:home page > Products > Dispensing Pump > Dispensing Pump
  400-0602-365

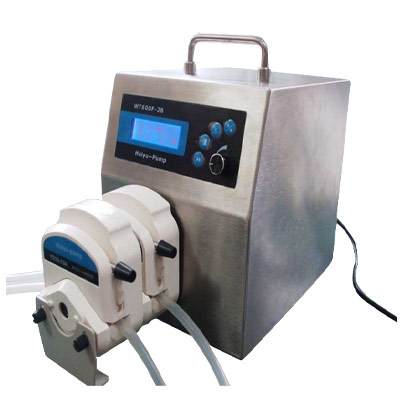

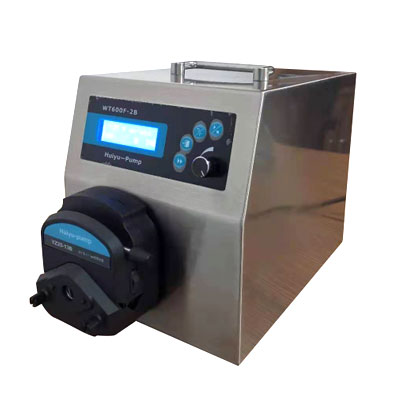

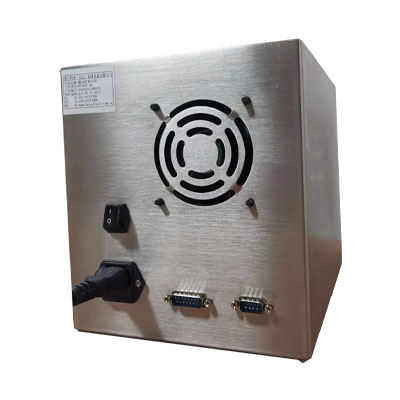

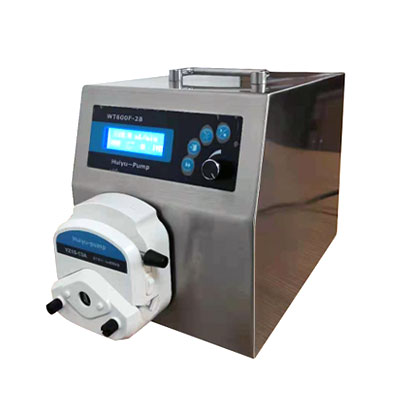

WT600F-2B
Flow range:≤6000ml/min
National Hotline:400-0602-365

Product description

Industrial distribution type intelligent peristaltic pump, high protection level

Suitable for damp, dusty and other industrial production environments

Dimensions

Technical Parameters

◇ Speed range: 10rpm-600rpm, forward and reverse reversible

◇ Speed adjustment resolution: 1rpm

◇ Distributed liquid volume range: 0.1ml - 99.9L

◇ Distribution liquid volume correction: The actual dispensed liquid amount value obtained by setting the dispensed liquid amount is input, and the dispensed liquid amount correction is automatically performed.

◇ allocation times range: 1-999 times, "0" is an infinite loop

◇Distribution interval time range: 0.1s-99min, adjust the resolution 0.1s

◇ External control function: Start/stop control, direction control, speed control (4-20mA, 0-5V, 0-10V, 0-10kHz optional)

◇ Speed status signal output: 166.7Hz-10kHz linear corresponding to 10rpm-600rpm

◇ Start and stop status signal output: OC gate signal output

◇ Direction status signal output: OC gate signal output

◇ Communication interface: RS485

◇ Applicable power supply: AC 110v or 220V/200W

◇ Measurement :270*200*230mm

◇ Full speed function: One-button control at full speed for filling, emptying, etc.

◇ Ambient temperature: 0-40 ° C

◇ Relative humidity: <80%

◇Protection rating: IP31

Pump head picture Name/Model Applicable hose Reference flow range

(1-4)×YZ15-13A 13#、14#、19#、16#、25#、17#、18# 0.7-2200ml/min
(1-4)×YZ25-13A 15#、24# 17-1600ml/min

(1-2)×KZ25 15#、24#、35#、36# 34-6000ml/min



Download Document: WT600F-2B.pdf
