Basic pump
Your location:home page > Products > Basic pump > Basic pump
  400-0602-365

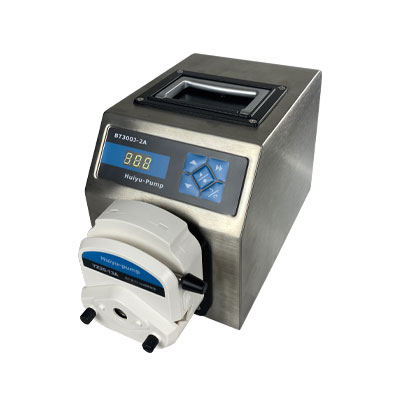

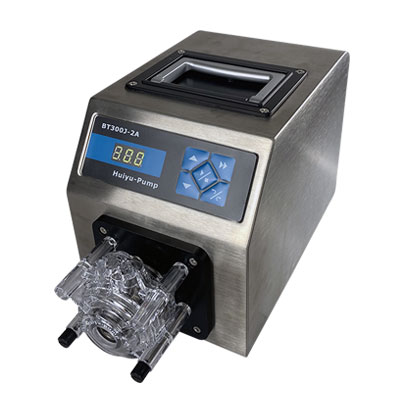

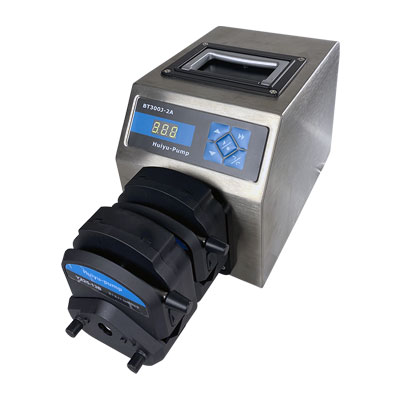

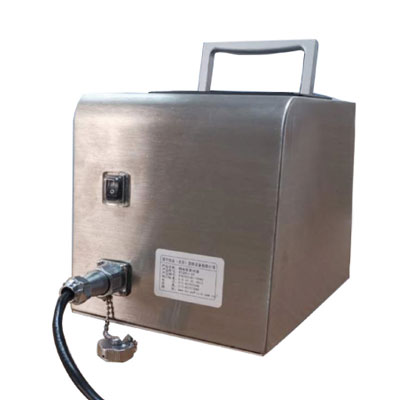

BT300J-2A(IP55)
Flow range:≤1140ml/min
National Hotline:400-0602-365

Product description

Industrial peristaltic pump, high protection level

Suitable for industrial production environments such as dampness and heavy sinking

Product Features

◇ Membrane buttons can control start and stop, direction and speed

◇ Can quickly fill and empty function

◇ It can communicate with the host computer

◇ External control signal can control start and stop, direction and speed

◇ Power-down memory function

◇ Leakage protection function

◇ Overheat protection function

Dimensions

Technical parameter

◇ Speed range: 1-300rpm, resolution 1rpm

◇ Direction of rotation: forward/reverse

◇ Adjustment method: membrane button and knob adjustment

◇ Display mode: three-digit LED digital tube displays the current speed

◇ External control interface: start-stop control, direction control, speed control (0-5V/0-10V voltage signal, 4-20mA current signal, 0-10kHz pulse signal are all available)

◇ Communication method: RS485 half duplex

◇ Applicable power supply: 90-260V AC, 50/60Hz

◇ Work rate: ≤50W

◇ Working environment: ambient temperature 0-40℃, relative humidity <80℃

◇ Dimensions: 250x160x190 (length x width x height) mm

◇ Weight: 4.32kg

◇ IP: 55

Pump head picture Name/Model Applicable hose Reference flow range
YZ15-13A 13#、14#、19#、16#、25#、17#、18# 0.07-1140ml/min
YZ25-13A 15#、24# 1.7-840ml/min

BZ15 13#、14#、19#、16#、25#、17#、18# 0.07-1140ml/min
BZ25-1A 15#、24# 0.26-780ml/min

DMD15-2A/1A 13#、14#、19#、16#、25# ≤870ml/min



Download Document: BT300J-2A.pdf
