Quick load pump head—KZ25
Flow range: ≤6000ml/min
National Hotline:400-0602-365

Introduction

When pump head KZ25-1A fix the same tubing with YZ25-1A, it can supply double flow rate than YZ25-1A

Supply two types of tubing retainer mode: Clamper or fitting.

KZ25-1A adopts 304 stainless steel rollers and PC casting. So it   supply visible operation The PPS compression block has Self-lubrication   to reduce tubing wear. Good rigidity for stable size. Excellent chemical   compatibility and heat - resistant.

Character

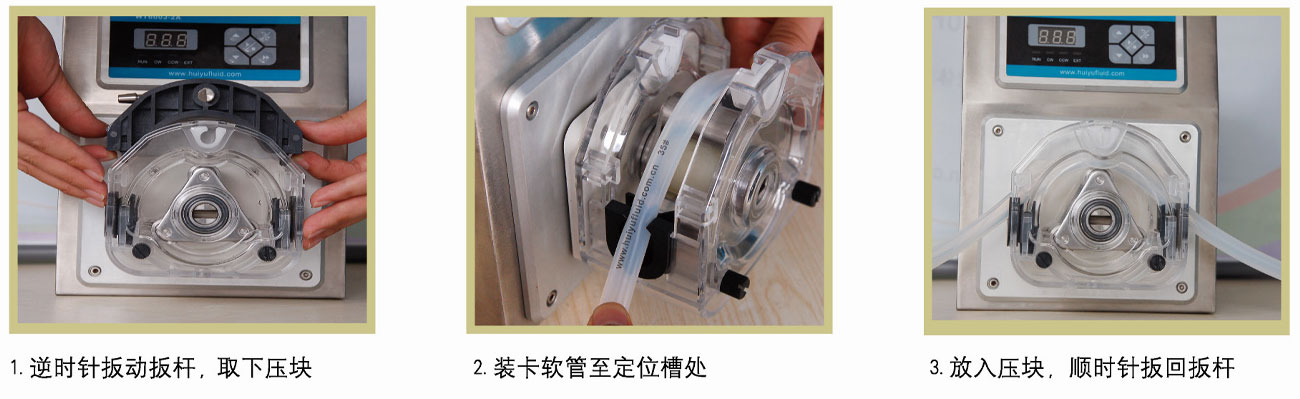

♢    Cartridges and base can be separated. It's convenient to load the tubing

♢     Pump heads can be stackable

♢     Compact size and a wide flow range

♢     Ideal for OEM

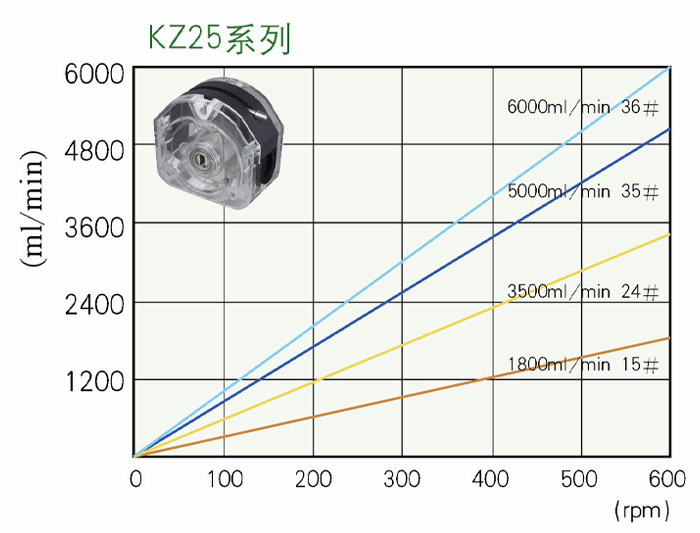

Flow curve

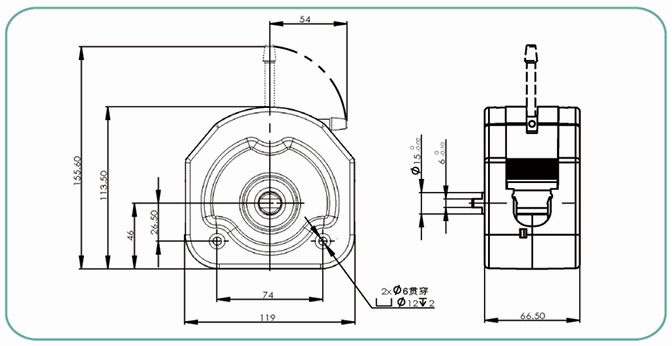

Dimensions

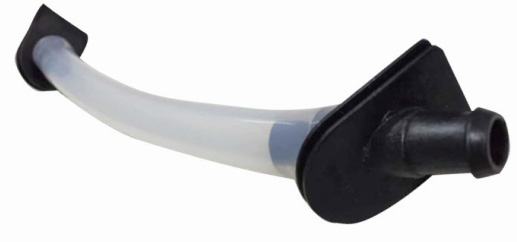

Dedicated hose assembly for pipe joints

Technical Data Sheet

Model Applicable hose Maximum reference flow (ml/min) Speed range (rpm) Shell material Briquetting material Number of rollers Wheel material Weight (kg)
KZ25-1A 15# 1800 ≤600 PC PPS 3 SUS 304 0.79
24# 3500
35# 5000
36# 6000



Download Document: KZ25-1A.pdf
