Simple pump head JY25
National Hotline:400-0602-365

Introduction to Pump Head

PPS shell, good rigidity, high temperature resistance

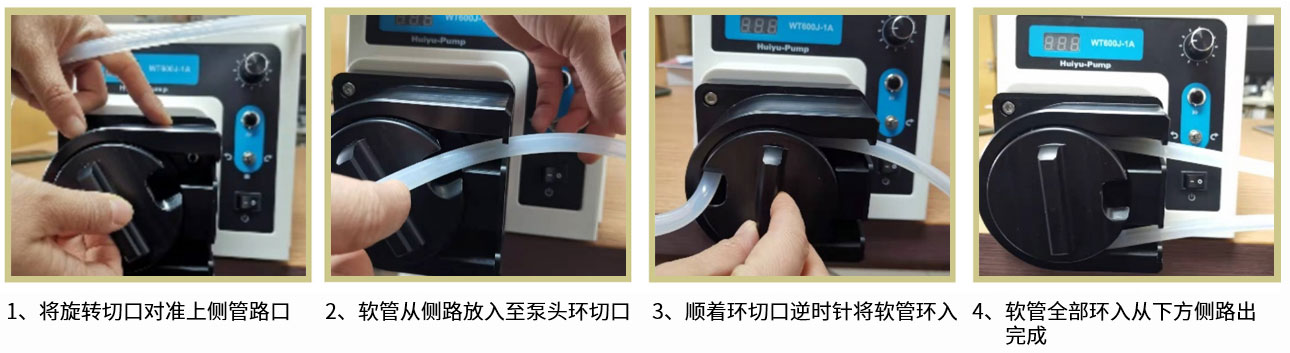

The hose loop-in clamping design avoids artificial discomfort when installing and improves the service life of the hose

Small size, large flow, higher transmission accuracy

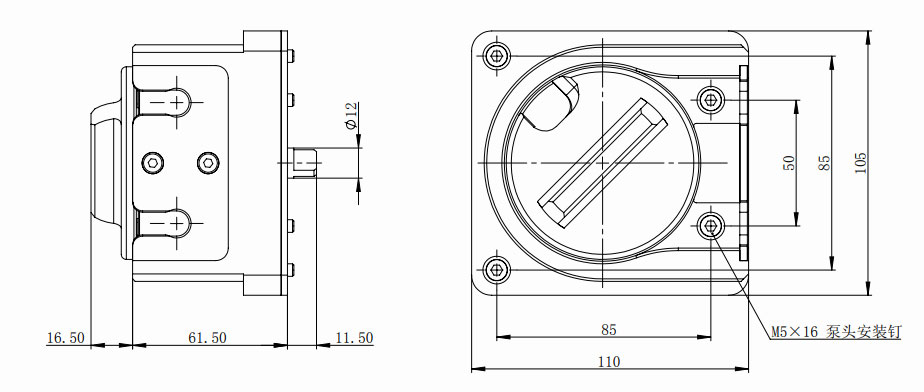

Dimensions

Technical parameter table

Model     Applicable hose Reference flow (ml/min) Speed range (rpm) Shell material Briquetting material Number of rollers Wheel material Weight (kg)
JY25 15# ≤1730 ≤600 PPS PPS 3 SUS 304 0.65
24# ≤3150
35# ≤4880
36# ≤5350
