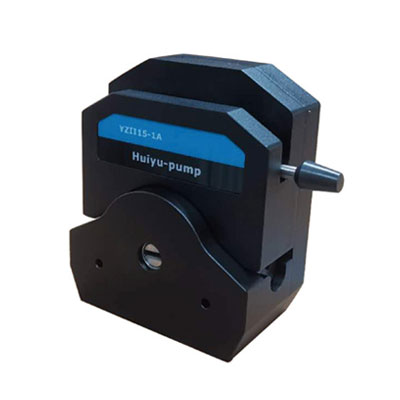

Introduction to Pump Head

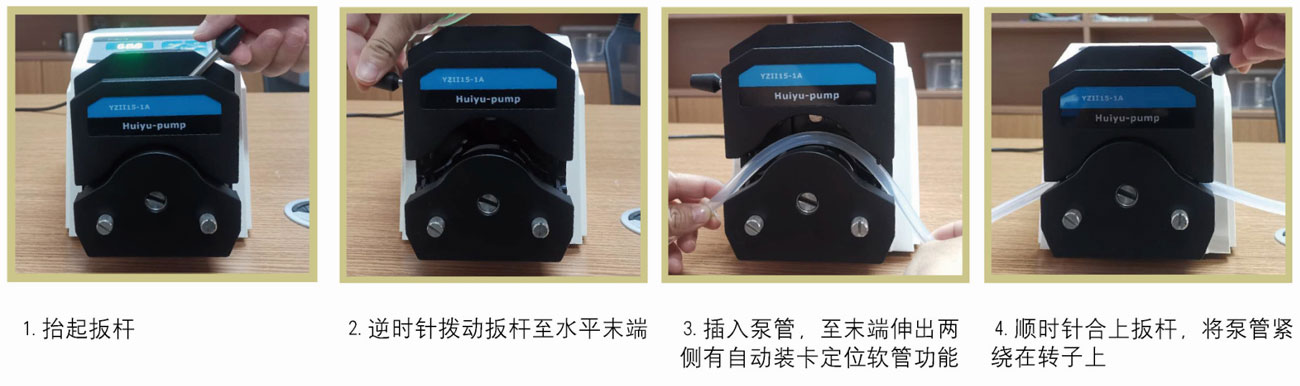

The classic design of the trigger lever of the pump head of the peristaltic pump
Aluminum alloy anodizing treatment
Long life, good rigidity, high flow accuracy, sturdiness and durability
YZⅡ25 is suitable for more hoses than YZ25 and can provide larger flow
Dimensions
Technical Data Sheet
| Adapted pump head | Applicable hose | Reference flow (ml/min) |
Speed range (rpm) |
Roller material | Shell material | Number of rollers |
Weight (kg) |
| YZⅡ15 | 25#、17#、18# | ≤3220 | ≤600 | SUS304 | 铝合金表面阳极化 | 3 | 1.52 |
| YZⅡ25 | 15#、24#、35#、36# | 4140 |
Download Document:
KZ35-1A.pdf
