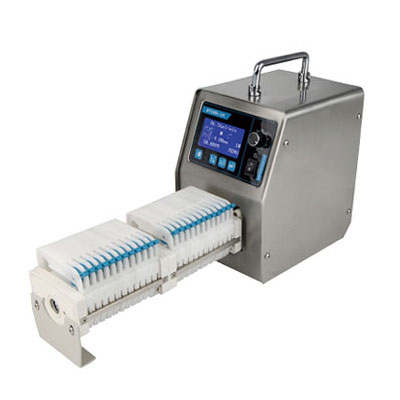

Product description
The output torque is large, and the multi-channel pump head can be superimposed to run at the same time
Using 128×64 dot matrix large-screen LCD display
It can display the flow and speed of the pump at the same time, with flow correction function
Features
◇ Membrane buttons can control start and stop, direction and speed
◇ Can quickly fill and empty function
◇ It can communicate with the host computer
◇ External control signal can control start and stop, direction and speed
◇ Power-down memory function; leakage protection function; overheating protection function
◇ Different pump heads can be replaced
Dimensions
Technical parameter
◇ Speed range: 1-100rpm, resolution 0.1 rpm
◇ External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)
◇ Display mode: graphic dot matrix liquid crystal display
◇ Communication method: RS485 half duplex
◇ Output torque: 2N.m
◇ Applicable power supply: AC 220V ±20% 50~60Hz
◇ Power consumption: ≤55W
◇ Working environment: ambient temperature 0℃~40℃ relative humidity＜80%
◇ Dimensions: 202×153×260 (length×width×height)mm
◇ Drive weight: 5.5kg
◇ Degree of protection: IP31
Pump head picture | Name/Model | Applicable hose | Reference flow range |
| (1-4)×YZ15-13A | 13#、14#、19#、16#、25#、17#、18# | 0.07-380ml/min(Single channel) |
| (1-4)×YZ25-13A | 15#、24# | 0.2-270ml/min(Single channel) | |
| (1-24)×DG series (6 rollers, 10 rollers) | Wall thickness: 0.8-1mm Inner diameter: ≤3.17mm | 0.00025-48ml/min(Single channel) |
