Designed for high-purity applications, Huiyu Silicone Tubing's ultra-smooth inner bore can reduce the risk of particle entrapment and microscopic buildup during sensitive fluid transfer. In-house analysis of the inner surface of Sanitary Silicone Tubing compared to other silicone tubing shows that it is up to three times smoother. Additionally, this smoother fluid path facilitates complete system cleaning and sterilization.
Utilizing a platinum-curing process, Huiyu Sanitary Silicone Tubing eliminates the concern of extraction often encountered when alternative curing methods are used. It reduces user cost and time associated with process validation.
Features
Ultra-smooth inner bore reduces potential for particle entrapment
Minimal extractables help maintain fluid integrity
Hydrophobic surface improves fluid flow
Documented biocompatibility to the ISO 10993 standard

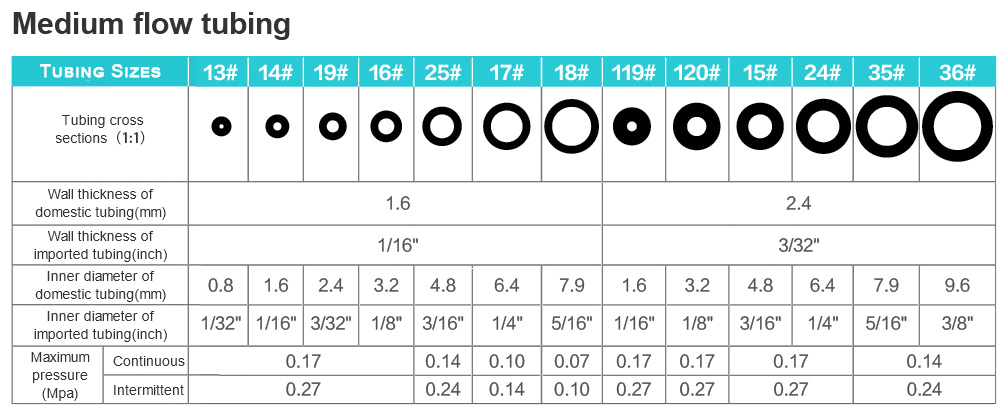

Technical Table
| material | Tube number | Inner diameter(mm) | wall thickness(mm) | suitable pump head | package (meter) |
silicone tubing | 13# | 0.8 | 1.6 | YZ15-1A TH15 | 15 |
| 14# | 1.6 | 15 | |||
| 19# | 2.4 | YZ15-1A TH15 | 15 | ||
| 16# | 3.1 | YZ15-1A TH15 | 15 | ||
| 25# | 4.8 | 15 | |||
| 17# | 6.4 | YZ15-1A | 15 | ||
| 18# | 7.9 | YZ15-1A | 15 | ||
| 15# | 4.8 | 2.5 | YZ25-1A KZ25 | 15 | |
| 24# | 6.4 | YZ25-1A BZ25 KZ25 | 15 | ||
| 35# | 7.9 | KZ25 | 15 | ||
| 36# | 9.6 | KZ25 | 15 | ||
| 73# | 9.5 | 3.3 | KZ35 YZ35 YZ35 | 15 | |
| 82# | 12.7 | KZ35 YZ35 YZ35 | 15 | ||
| 88# | 12.7 | 4.7 | KZ48 | 15 | |
| 92# | 25.4 | 4.76 | 15 | ||
| 0.5*0.8 | 0.5 | 0.8 | DG WX10 | 15 | |
| 1*1 | 1 | 1 | DG WX10 | 15 | |
| 2*1 | 2 | 15 | |||
| 2.4*0.8 | 2.4 | 0.8 | DG WX10 | 15 | |
| 3*1 | 3 | 1 | DG WX10 | 15 | |
| 1*1sss | 1 | 12piece | |||
| 2*1sss | 2 | 12piece | |||
| 2.4*0.8sss | 2.4 | 0.8 | DG WX10 | 12piece |
